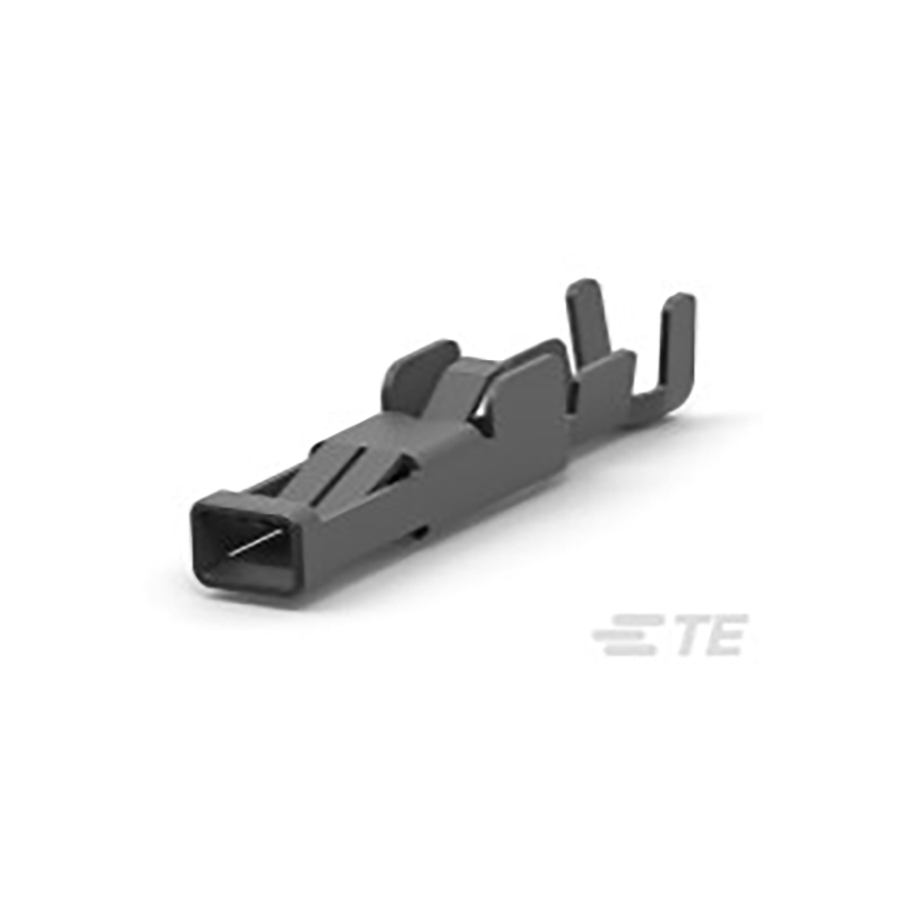

1-179316-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-179316-2
Datasheet:
Description:
Power Connectors Cable Current Rating:15 A Connector, PCB, Signal, Socket Female
| Parameter | Value |
|---|---|
| Length | 21.3 mm |
| Width | 4 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 3.8608 mm |
| Packaging | Reel |
| Voltage Rating | |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 12 mm |
| Current Rating | 15 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| Number of Contacts | |
| ELV | Compliant |
| Connector Type | Connector, PCB, Signal, Socket |
| Wire/Cable Gauge | 20 AWG to 16 AWG |
| Number of Positions | |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Current Rating | 15 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 16 AWG |
| Plating | Gold |
| Insulation Diameter | 2.8 mm |
| Underplate Material | Nickel |
| Sealable | No |
| IP Rating(Ingress Protection) | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 6391
Distributors
pcbx
pcbxUnit Price$0.13166
Ext.Price$0.13166
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13166 | $0.13166 |
| 10 | $0.11114 | $1.11140 |
| 50 | $0.10223 | $5.11150 |
| 100 | $0.09404 | $9.40400 |
| 500 | $0.08647 | $43.23500 |
| 1000 | $0.07951 | $79.51000 |
| 3000 | $0.06311 | $189.33000 |
| 5000 | $0.05010 | $250.50000 |
